Create a Historic Naval Battle Scene

Jan 9th in VFX by James Whiffin

This tutorial will teach you how to create a VFX naval battle scene similar to those seen in period war movies. You'll learn how to take ordinary footage shot with a DV camera and transform it into a realistic looking old film war battle scene

PG

Author: James Whiffin

My name is James Whiffin and I like to mess around with after effects in my spare time

Preview

RSS subscribers: please click here to view preview video.

Get the Flash Player to see this player.

Download

Preview

Requirements: Adobe After Effects, Trapcode Particular (download the trial version here).

The tutorial uses stock footage from: http://www.detonationfilms.com/Stock_Directory.html

Step 1

Import your footage into after effects. Click and drag it into the new composition button.

Step 2

We need to track our footage. Select window (top menu) and make sure tracker controls are selected.

In the tracker controls make sure your footage is selected in the motion source. Then press track motion and check the rotation box. (If your scene contains any zooms then also select the scale button)

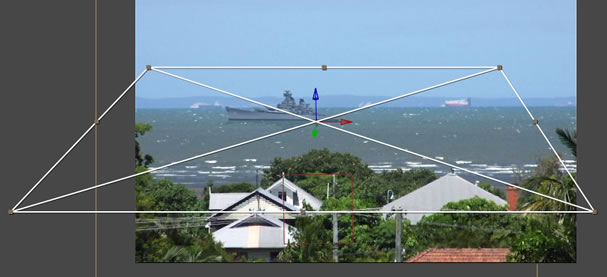

The track points should come on your screen. Enlarge them by clicking and dragging the edges. The larger the track points, the longer the tracking will take but it will be more accurate.

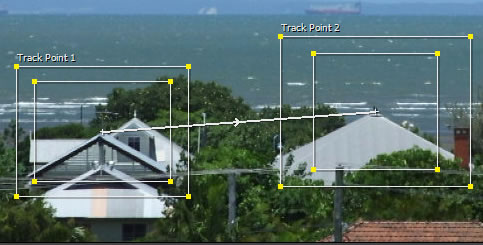

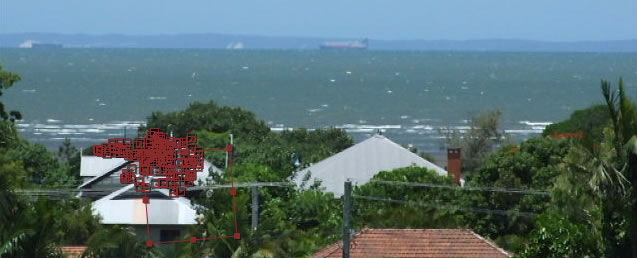

The middle of the track points should be placed on distinct parts of the scenery like roof tops.

Step 3

In the tracker controls press analyze forwards. The camera will start tracking the points. If the track points displace from the rooftops then i know my track is incorrect.

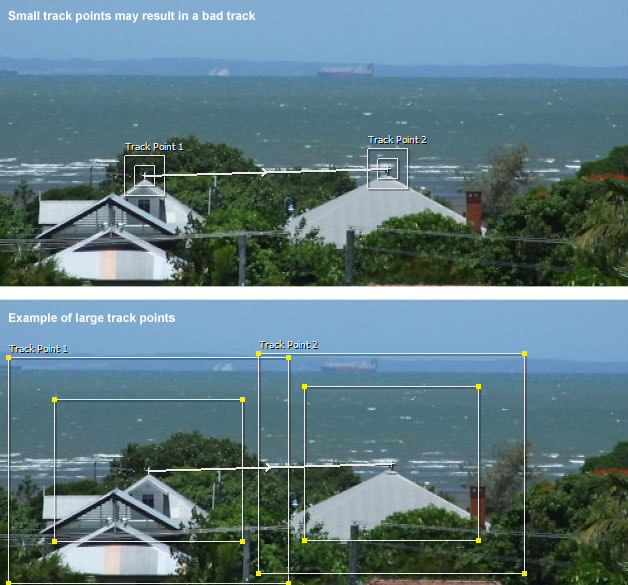

A bad track can be solved by dramatically increasing the size of the track points. Big track points take a very long time to analyze but will fix a bad track.

If your track looks good go layer - new null object and rename it "track"

Then on the tracker controls press Edit Target (select the null object) press apply then select X and Y

Scroll through your footage and the null object should move with the scene.

Step 4

I have taken this image of a battleship from Flickr.com (this image has a Creative Commons License for Commercial Use) and erased the background in photoshop.

Once you have done this save it as a .psd then import it into after effects with editable layers.

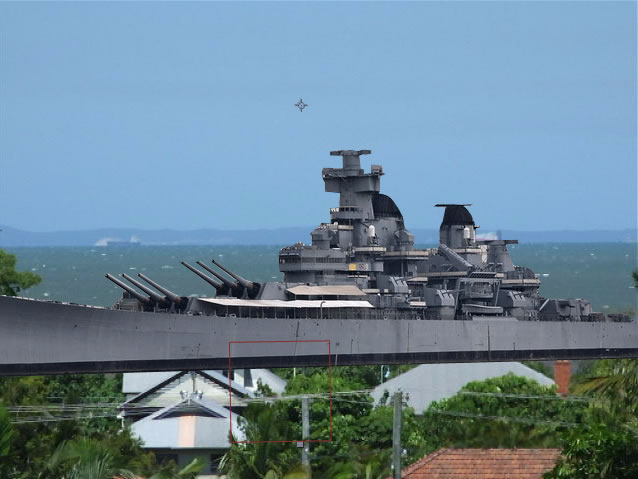

Then place the image into the composition, as you can see it is too big. Scale it down by selecting the layer and pressing "S" then drag the percentage down to 23%.

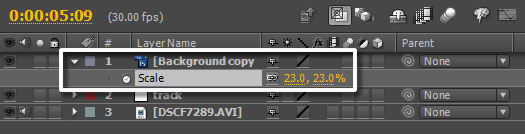

Now that the ship is the correct size place it in an appropriate place, then color correct it using effects - hue and saturation.

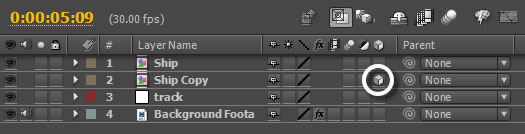

Duplicate the ship layer (Control+D on windows), and turn the copied layer into a 3d layer by clicking the 3D layer icon

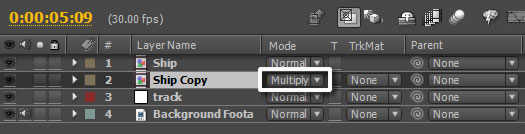

Now press F4 and change the Ship Copy layer's transfer mode to Multiply. This will darken it slightly.

With the Ship Copy Layer selected press "T" and change the opacity to 20%. Now press "W" for the rotation tool and swing the x axis forward.

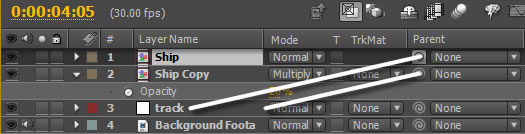

Now drag the parent tool for the Ship layer onto the track layer. Do the same for Ship Copy layer. Now that they are parented the ship and it's shadow will move in sync with the cameras movements.

Repeat Step 4 until you have a few ships.

Step 5

Add a new Adjustment Layer by selecting Layer - New Adjustment Layer and add the old war film look animation preset by selecting Animation - Apply Animation Preset and selecting the preset in the dialog window.

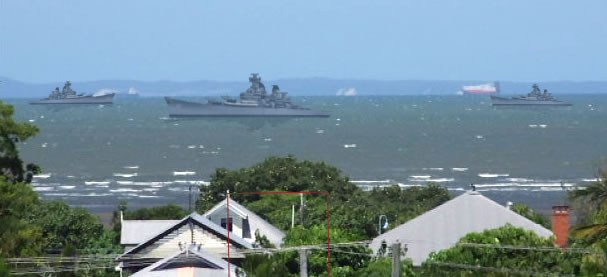

The footage should now look like this:

Go effects - color correction - brightness and contrast and increase the contrast on each ship by 20.

Step 6

Now we want to make the ship on the right look like it's been hit by a bomb and its billowing smoke.

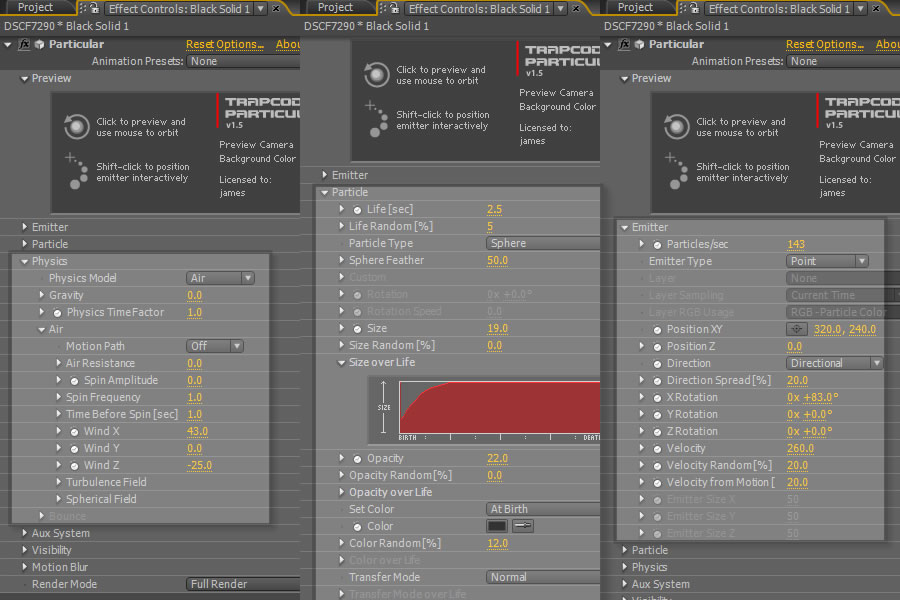

Go layer - new solid. Add trapcode particular. Rename it to "Smoke" and change it to these settings:

Change the layer Opacity to 30%

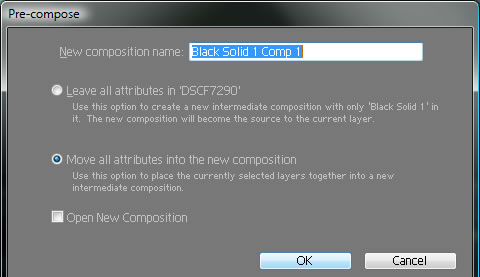

Then press Layer - Pre Compose - Move all Attributes.

Right click on the Smoke layer and click Time - Enable time remapping.

Now go Composition - Composition Settings and change the length of the composition from 7 seconds to 7 minutes.

Now click on this button down the bottom until you can see the whole composition.

Now drag the second Time Remap keyframe from point A to point B

This stops the smoke from coming out way too fast. Now change the composition length back to 7 seconds.

Now we will create the rocket. We will be using LineRocket Away01. Be sure to check out more at Detonation Films!

Once imported, change the transfer mode to screen.

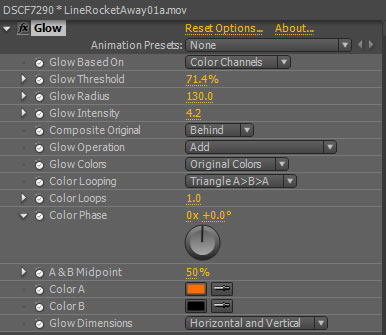

Line the rocket up with the ships, and add a glow with these settings.

Now the line rocket shoots towards the center ship, then disappears. So 1 second later the ship is going to blow up.

Download the explosion here: TPipe01 Download free zip file

Download the fire here: ArcRipper__ Download free zip file

Position the thunderpipe ontop of the ship as well as the arc ripper. Make sure both layers are set to transfer mode of screen.

Draw a mask around the arc ripper so the flames don't spill out of the ships deck. Now press "MM" to reveal the mask properties and change them to this:

Now add a Brightness & Contrast filter on the arc ripper and reduce it's brightness by -56.

Step 7

Download this super high-res image of clouds Here (this image has a Creative Commons License for Commercial Use) and rub out the base with a feathered brush in photoshop.

Now place it into your composition in After Effects, making sure it's underneath our Adjustment layer.

On the cloud layer turn the Brightness down to -13 and bring the Contrast up to 33

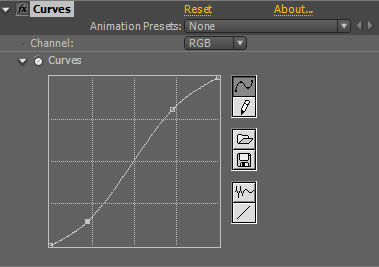

Create a new Adjustment Layer and add a Curves adjustment and create a contrast curve in the RGB channel.

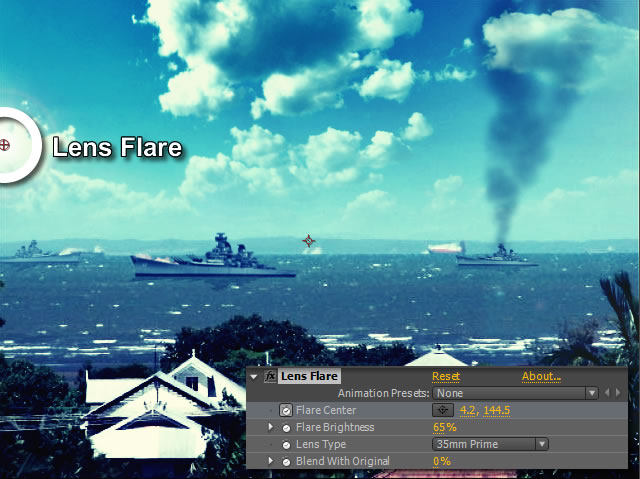

Create another Adjustment Layer and add a Lens Flare with these settings.

Step 8

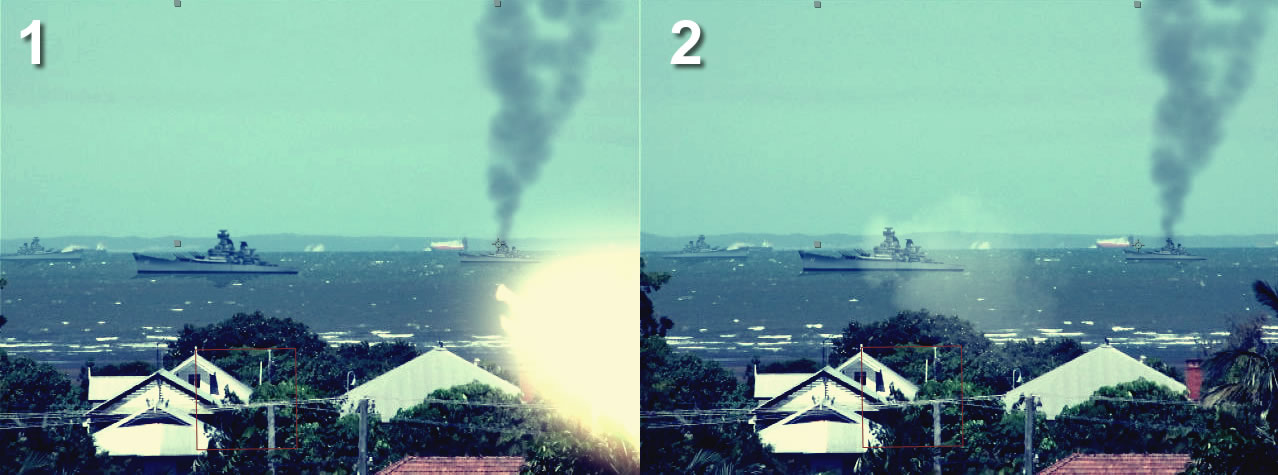

When the explosion goes off we want it to be more dramatic. First, save your project. Second, select every layer and go to layer - precompose, select move all attributes. Now you have one layer.

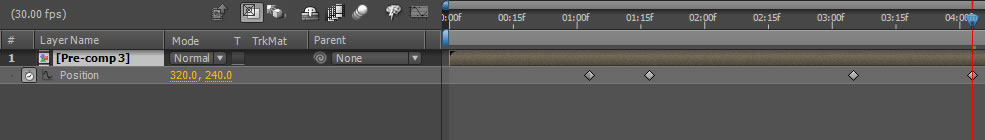

Press P to bring up the position keyframes, and create keyframes before and after the missile fires, as well as the explosion.

Select the first two and go to window - the wiggler. Use these settings and press ok.

For the second two keyframes use these settings.

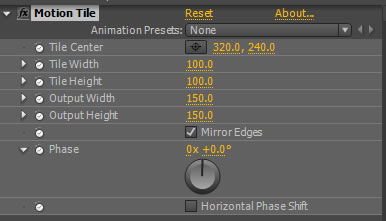

Now apply a motion tile to the layer using these settings.

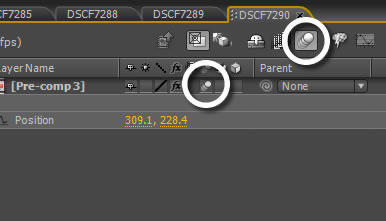

Now turn on the motion blur in the layer as well as the composition by pressing these two buttons.

Now the camera shakes when the explosions occur. You're finished! (Just add audio) Hope you enjoyed this tutorial.
